BUILT-IN ILLUMINATION
Enables night navigation
BUILT-IN COMPENSATOR
Deviation compensator so that you always can keep a steady course
PROTECTIVE COVER
Keeps your compass safe from outer damage
Enables night navigation
BUILT-IN COMPENSATOR
Deviation compensator so that you always can keep a steady course
PROTECTIVE COVER
Keeps your compass safe from outer damage
SUITABLE FOR ALL BOATS
Fits in all boat types
Fits in all boat types

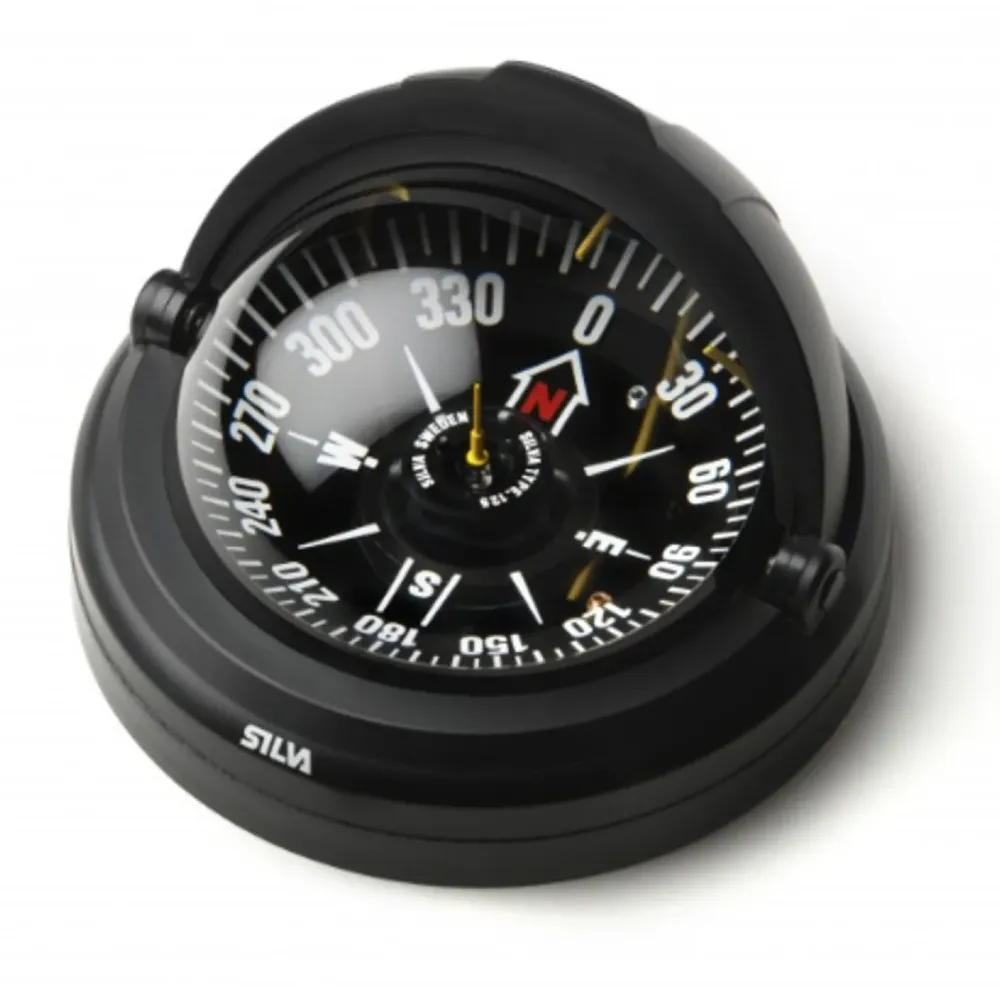

125FTC is a compass designed for boats and yachtsmen that demand absolute accuracy and a steady card in all conditions and heeling angles.
It is flush-mounted, with an apparent scale size of 125 mm and a gimballed cradle. Features include the possibility to compensate for magnetic field disturbance, integrated illumination in the adjustable protection cover for ideal night vision and counter-balanced lubber lines that remain vertical even in rough seas. The extended center needle eliminates parallax errors and facilitates off course bearings.
Specifications:
| Article number | 37195-2411 |
|---|---|
| Accuracy |
± 0,5° (8.9 mils) |
| Apparent card diameter |
125mm |
| Built-in compensator |
Yes |
| Card type |
Flat |
| Compatibility |
Powerboats, Sailboats |
| Dimensions |
124mm diameter |
| Gimballed cradle |
Yes |
| Heeling angle |
Roll: 45° Pitch: 30° |
| Heeling angle scale |
No |
| Illumination |
24V., Red |
| Lubber lines |
Centre and 2x side view at 45° |
| Material |
ABS, Acrylic |
| Memory ring |
No |
| Mounting |
Flush |
| Mounting angle |
-10° to 10° |
| Protective cover |
Yes |
| Temperature operating range |
-10°C to 70°C |
| Variant |
Magnetic Equator, Magnetic South, Magnetic North |
| Weight |
1500g |
