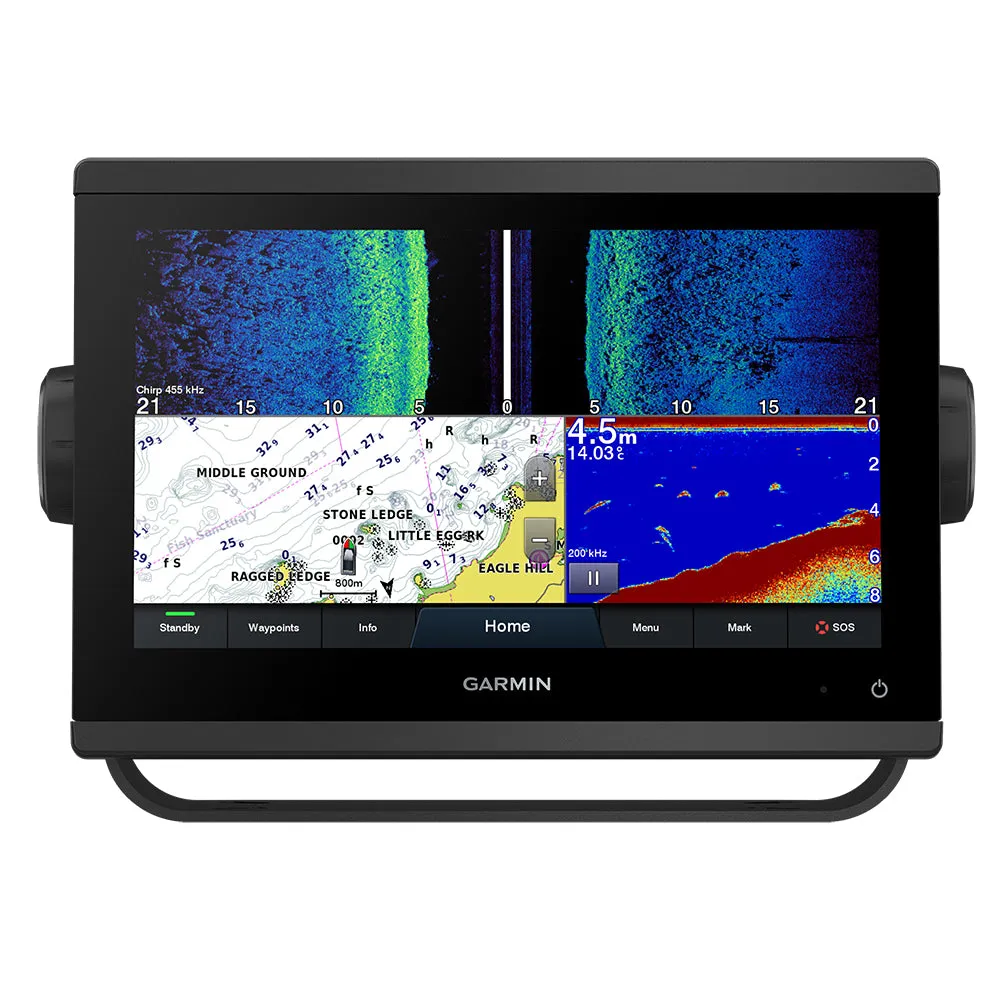

GPSMAP® 923xsv Combo GPS/Fishfinder - Worldwide

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9” GPSMAP devices, this crisp chartplotter/sonar combo with a high-resolution IPS display integrates seamlessly into your Garmin marine system.

Features:

• Easily integrate with more engines.
• Connect to compatible third-party devices with OneHelm™ digital switching.
• Easily build your marine system using the best network connectivity.
• Compatible with premium maps and charts1 for the best in Garmin navigation.
• See below your boat with built-in sonar capabilities.
• Manage your marine experience from nearly anywhere2.

ULTRA HIGH-DEFINITION SCANNING SONAR

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from the structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.

PANOPTIX™ SONAR SUPPORT

Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real-time.

FASTER, SHARPER, SMARTER

With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 9” plotter in a wider range of dash configurations.

IMPROVED DISPLAY OPTICS

Higher-resolution 9” IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9” GPSMAP devices.

OPTIONAL BLUECHART® G3 VISION® CHARTS

These optional charts offer the best of Garmin and Navionics® data, Auto Guidance3 technology and other premium navigation features.

OPTIONAL RADAR BUNDLE

To help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar, and IP camera video — among them.

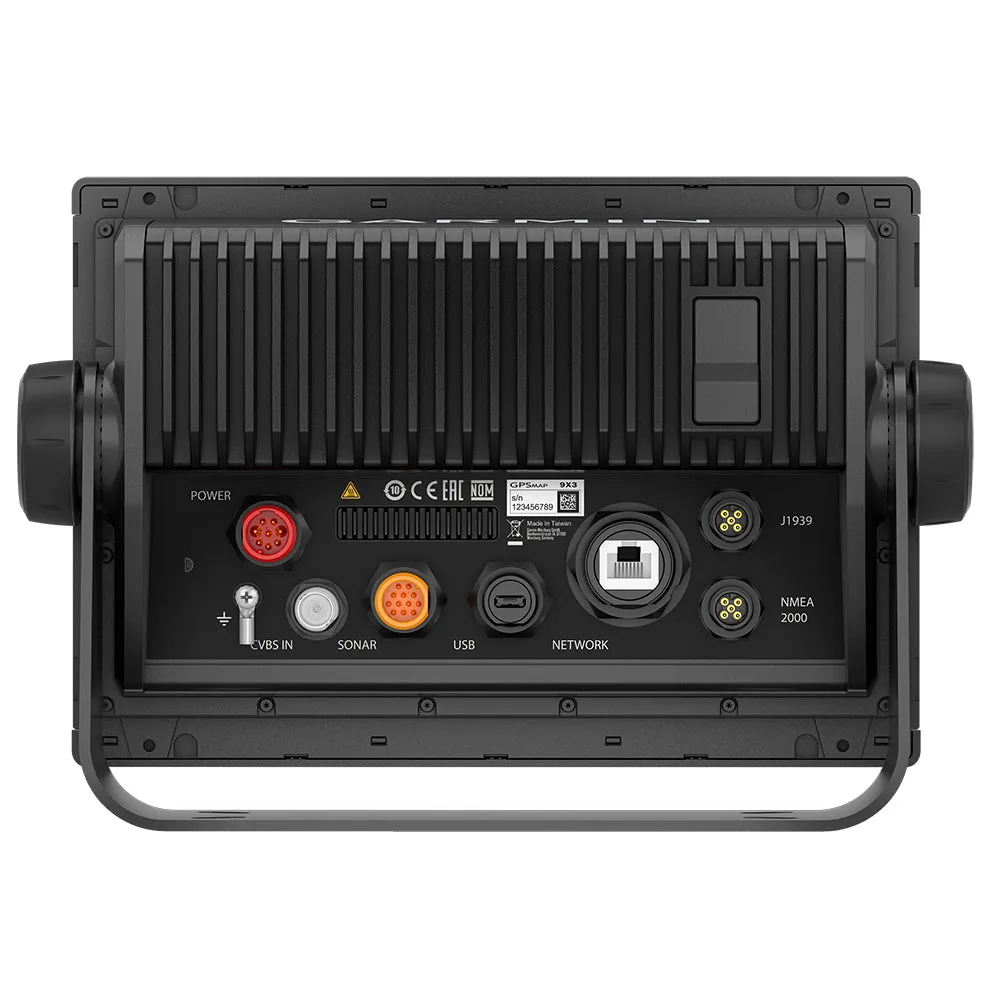

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, and more from one screen.

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data, and more4.

INTEGRATED ANT® TECHNOLOGY

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments, and wireless remote controls.

J1939 CONNECTIVITY

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

ONEHELM FEATURE

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

What's In The Box?

• GPSMAP 923xsv chartplotter
• microSD™ card preinstalled
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 meters)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

1 Sold separately

2 Requires ActiveCaptain app on your compatible smartphone paired to the GPSMAP 723xsv

3 Auto Guidance is for planning purposes only and does not replace safe navigation operations

4 When paired with your compatible smartphone

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Specifications:

• Cartography Brand: Garmin
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 8"H x 10"W x 14"L WT: 8.85 lbs
• UPC: 753759250546
